Ingress Protection (IP) ratings in LED screens are internationally recognized standards that classify the level of protection electronic devices offer against the intrusion of solid objects and liquids. The rating consists of two digits: the first refers to protection against solids (ranging from 0 to 6), while the second indicates water resistance(ranging from 0 to 9).
For example, an IP65-rated LED display means it is dust-tight and resistant to water jets from any direction. An IP67 LED screen, on the other hand, ensures complete protection against dust and allows temporary immersion in water up to 1 meter for 30 minutes. These classifications are crucial when evaluating outdoor LED screens used in environments with varying exposure to dust, rain, humidity, or immersion.
The IP rating is determined through controlled laboratory tests that simulate real-world exposure conditions. To assess dust resistance, LED screens are exposed to fine particles over a set period, while water resistance is tested through sprays, jets, or submersion at specified depths and durations. Results from these tests define the final IP rating, offering users a clear measure of durability and suitability for specific applications.

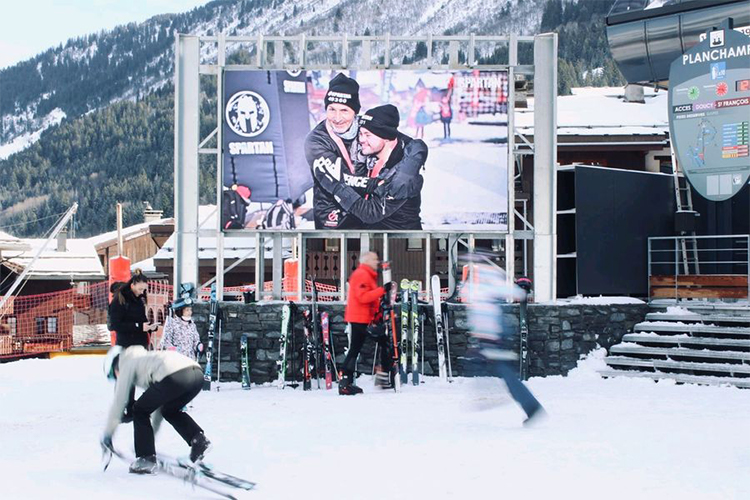

For LED screens, selecting the appropriate IP rating ensures operational stability and extended lifespan, especially in outdoor video walls, like digital signage, digital billboards, or pole-mounted screen for traffic. Higher IP ratings typically correlate with increased protection but may also involve larger enclosures or higher costs. Understanding IP classifications helps users balance safety, functionality, and aesthetics when choosing LED screen solutions for different environments.
